Product Description
It has high printing durability and can be used under the same conditions as ordinary CTP.
The thermal CTP Plate is compatible with all kinds of mainstream platesetters, developing machines and developing solutions on the market.
Unique Air Eduction Layer - Perfect Dot Reproduction.With tiny air eduction grain on the Baotu PS plate surface, the vacuuming time during exposure can be greatly decreased, as well as preventing image halation.
Unique Photosensitive Coating - High Sensitivity.Baotu's unique photosensitive coating consists of world’s first class photographic emulsion and resin, which offers outstanding alkaline resistance, superior stability, high sensitivity and increased adjusting flexibility. Baotu's unique photosensitive coating ensures Baotu PS plate of unmatched resolving ability.

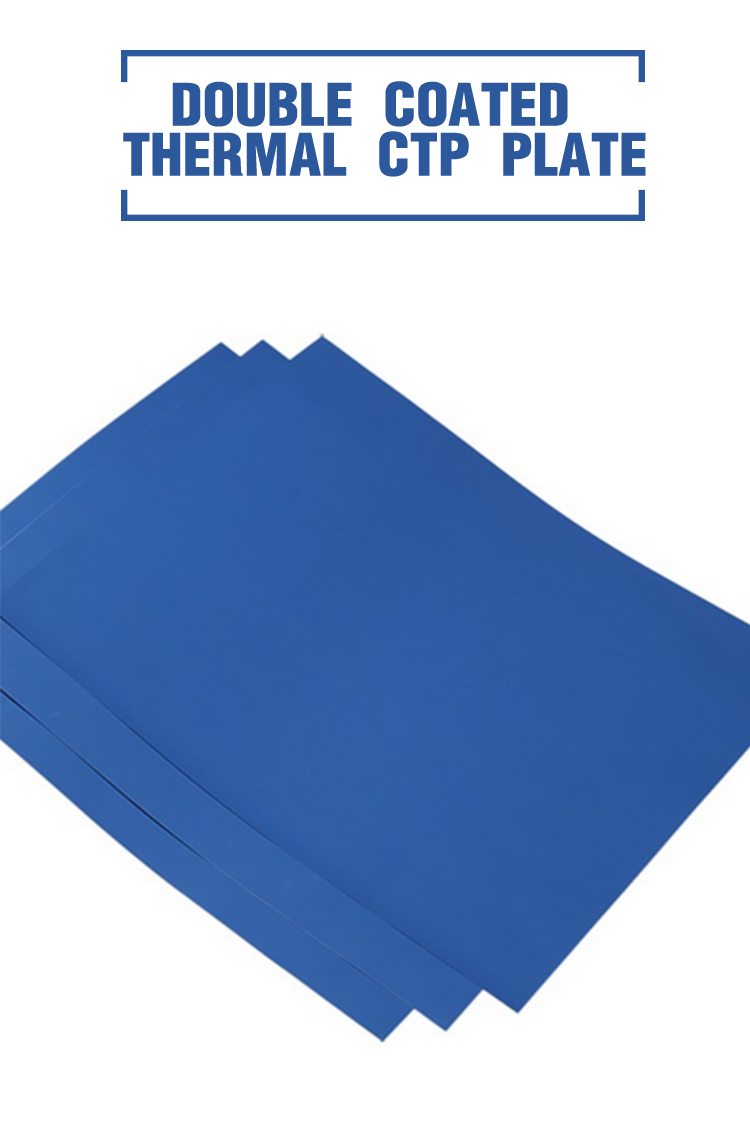

| Application Type | Double coated thermal CTP plate |
| Plate Features | Very fast sensitive speed, Large developing latitude, Excellent Dot Reappearance, Super Long Impressions |
| Compatible Plate setter | Compatible with all the common thermal plate setter |
| Plate Thickness | 0.15mm-0.30mm |
| Maximum Coil Width | 1350mm |
| Spectral Sensitivity | 830nm |
| Exposure Energy | 90-110mj/cm² |
| Developing Temperature | 23-25℃ |
| Developing Time | 25-35 Sec |
| Safe-light | 2 hours under white light |
| Resolution | 1-99% at 200lpi |
| Run-Length | Normal lnk: 3500,000 -4000,000 impressions unbaked and UV lnk: 150,000 to 200,000 impressions unbaked(Actual run length may vary according machine,ink,paper conditions) |
| Shelf Life | 24 Months |
| Storage Conditions | The recommended storage conditions are 10-25℃,with 40%-60% humidity Away from sunlight radiation & direct sunlight, Anti-humidity ,Anti-acid & alkali, Pack height no more than 1.5 meters |

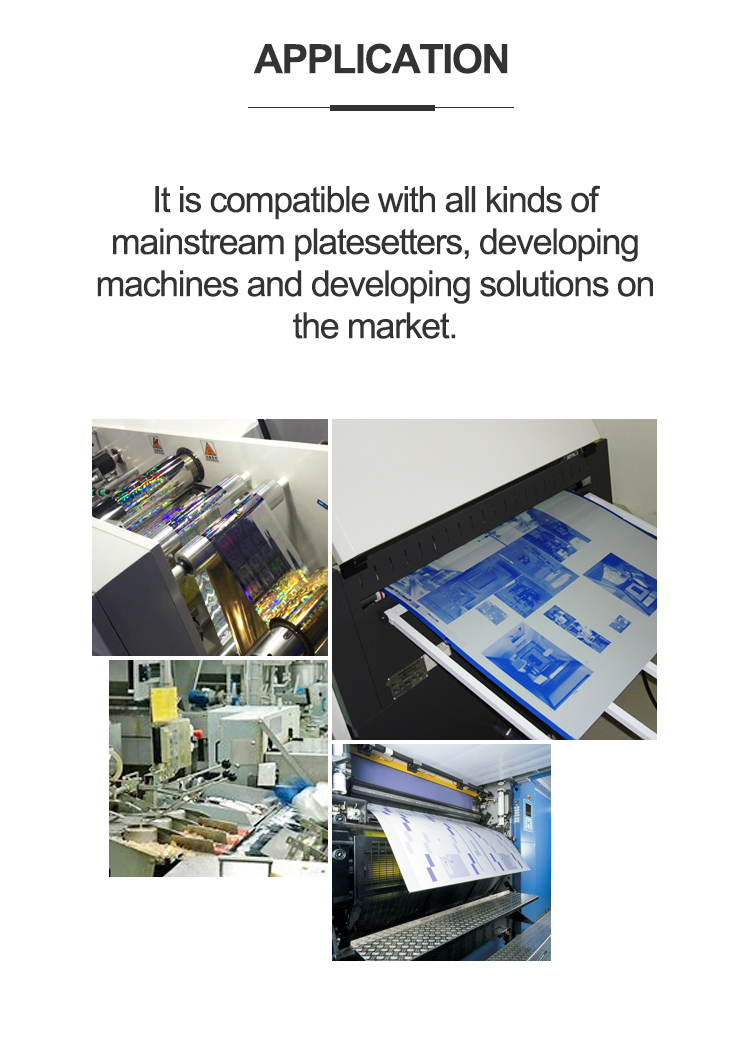

Applications
FAQ
Q1 : How can you control your quality?
A1 : For each production processing, JUCOS have complete QC system for the chemical composition and Physical properties. After production, all the goods will be tested, and the quality certificate will be shipped along with goods.
Q2 : Are you a manufacture or trader?
A2: We are truly a manufacturer, we not only can provide the high quality products with the best price, but also can offer the best pre-sale service and after-service.
Q3 : Do you provide free samples?
A3 : Of course, free samples are available.
Q4 : What is your lead time?
A4 : It usually needs about 5- 30 days after receiving the PO.
Q5 : What is the warranty of your products?
A5: Our products have at least 1 year warranty,if any quality problems, we will take responsibility of the cost of the shipment and the replacement.
Q6 : What's the MOQ of trial order?
A6 :No limit,we can offer the best suggestions and solutions according to your condition.
