Product Description

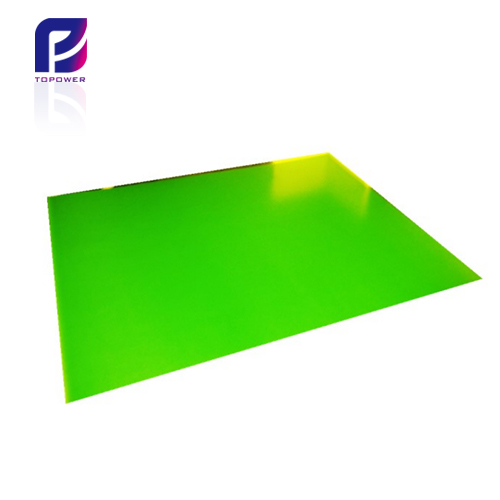

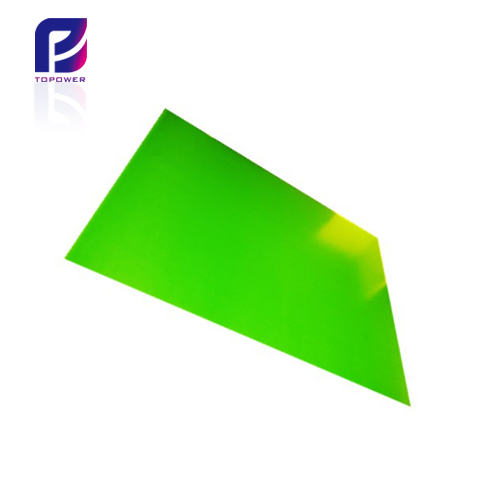

Offset positive PS plate has outstanding Multi Grain Layer that can provide excellent Performance in Developin. - This plate has extraordinary Run Length because of the durable anodic-oxidized layer. Offset positive PS plates are hot selling in Middle East, Southeast Asia, Africa.
Technical data | Thickness | 0.15-0.4mm |
| Coating | Green face | |
| Spectral sensitivity | 320-450nm | |
Exposure Energy | 120 - 140 mj/cm2 | |
| Resolution | 2% - 98% at 200 lpi | |
| Run Length | 80,000 - 100,000 actual run length may vary according to press, ink and paper condition. |
Plate Developing Condition | Recommended Developer | Baotu developer or any other type of positive PS plate developer |
| Protection Gum | Suitable for any PS plate protection gum | |
| Developing Temperature | 21 - 25 degree Celsius | |
| Developing Time | 25 - 35s | |
| Developer Concentration | powder to liquid = 1:6 (automatic) powder to liquid = 1:7 (manual) |
Plate Baking Condition | Baking Temperature | 220 - 250 degree Celsius |
| Baking Time | 5 - 8 minutes | |
| Run Length after Baking | 300,000 - 500,000 |
Storage Information | Safe Light | Yellow |
| Shelf Life | 18 months under recommended storage conditions (10 - 30 degree Celsius, relative humidity: 40% - 70%, stacking height less than 1.5 meter) | |
| Package | 0.15mm, 100 sheets per carton 0.30mm, 50 sheets per carton |
Features
1.Unique Air Eduction Layer - Perfect Dot Reproduction
With tiny air eduction grain on the Baotu PS plate surface, the vacuuming time during exposure can be greatly decreased, as well as preventing image halation.
2.Unique Photosensitive Coating - High Sensitivity
Baotu's unique photosensitive coating consists of world’s first class photographic emulsion and resin, which offers outstanding alkaline resistance, superior stability, high sensitivity and increased adjusting flexibility. Baotu's unique photosensitive coating ensures Baotu PS plate of unmatched resolving ability.
3.Excellent Hydrophilic Layer - Sustainable Ink-water Equilibrium
Excellent water reception capability speeds up the ink-water equilibrium procedure and helps to reduce water absorption during printing process. Baotu's superior water retaining capability do effectively prevents non-image areas of the plate from scum and avoids paper distortion.
4.Outstanding Multi Grain Layer - Excellent Performance in Developing
Baotu's multi grain layer polishes up the hydrophilic substances of the non-image areas on the plate. This increases the ink-water adjusting flexibility and enhances the developing performance of the tiny dots. This also strengthens the dots’ ability to adsorb the coating layer, which consequently extends the run length of the plate.
5.Durable Anodic-oxidized Layer - Extraordinary Run Length
The durable and strong oxidized surface formed after the anodic oxidation process on the aluminum material prolongs the run-length of Ronsein plate. Anodic-oxidized layer also resists the corrosion of the retouching medium.
Applications
You can tell me your needs, we can provide a one-stop solution to achieve your satisfaction.
All the size can produced as your requirement with the thickness from 0.15mm-0.40mm in short delivery time.
All the plates are used first-grade aluminum substrate.
Factory direct export,the price is more competitive.
When you received the plates,if you have any questions,just contact with us.We support you the operational manual.
Company Profile
Shandong Topower Pte.,Ltd was created in 2017 as a famous manufacture in China who supplied high grade printing products service and solutions, which are focus on service to printing industry.Our main products are zinc plate, magnesium plate, copper plate, etching machine, cutting machine, etc. We have served more than 20 countries, including Peru, Indonesia, Chile, Pakistan, Turkey, etc.Your inquiry is very welcome.
FAQ
Q1 : How can you control your quality?
A1 : For each production processing, JUCOS have complete QC system for the chemical composition and Physical properties. After production, all the goods will be tested, and the quality certificate will be shipped along with goods.
Q2:How can I know if it is paid successfully?
A2: We will send you a payment confirmation email upon receiving your payment.
Q3 : Do you provide free samples?
A3 : Of course, free samples are available.
Q4:Why choose us?
A4:We can not only provide you high quality products with competitive price, but also we can supply good technique service which can help you solve problems.
Q5 : What is the warranty of your products?
A5: Our products have at least 1 year warranty,if any quality problems, we will take responsibility of the cost of the shipment and the replacement.
